Asco F262B220K Air Operated Valve 1/4" Normally Closed 0-125psi

Asco F262B220K Air Operated Valve 1/4" Normally Closed 0-125psi

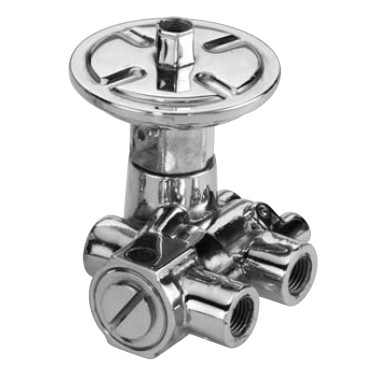

Images for general purposes only. Actual may be different than depicted.
Asco F262B220K Air Operated Valve 1/4" Normally Closed 0-125psi

Asco F262B220K Air Operated Valve 1/4" Normally Closed 0-125psi

SKU: F262B220K
Rating:
* This Product is Now Obsolete
No Replacement Available
0
0
0
0
Asco F262B220K is a general service air operated valve 1/4" Normally Closed 0-125psi

On 3-way and 4-way valves, except for those with zero minimum operating pressure, a Minimum Operating Pressure Differential must be maintained between the pressure and exhaust ports. Supply and exhaust piping must be full area, unrestricted. ASCO flow controls and similar components must be installed in the cylinder lines only.

Features:

• Unique sealing member isolates pilot air pressure from mainline fluid
• Variations in pilot air pressure do not affect valve operation
• Design provides long life handling of lubricated air
• Handle fluids up to 200°F (92°C)
• Some constructions handle steam up to 353°F (177°C)
• Mountable in any position
Connection Size 1/8" NPT
Actuated Displacement Volume 0.60 cu. ins. for 3-30 psi operators; 0.25 cu. ins. for 30-125 psi operator
Media Air
Nominal Ambient Temperature Ranges 32F to 125F (0C to 52C)
Flow Factor 0.50Cv

Following are the Attached files for this product:

ASCO General Service Air Operated Valves Technical Datasheet
