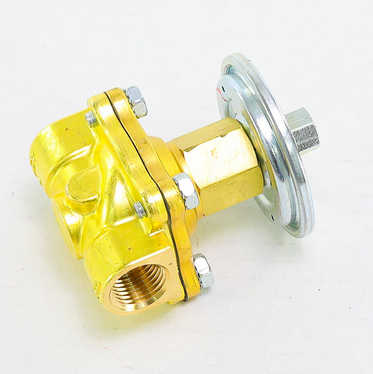

2-Way Instrument Air Operated Normally Closed and Normally Open Stamped Piston Valves
F210s are 2-way internal pilot operated valves with an instrument air operator controlled from a separate source. The main valve is made of brass. Valves have an adjustable bleed device which allows adjustment of the piston's operating speed.
• Unique sealing member isolates pilot air pressure from mainline fluid
• Variations in pilot air pressure do not affect valve operation
• Design provides long life handling of lubricated air
• Handle fluids up to 200°F (92°C)
• Some constructions handle steam up to 353°F (177°C)
• Mountable in any position
Actuated Displacement Volume
0.60 cu. ins. for 3-30 psi operators; 0.25 cu. ins. for 30-125 psi operator
